Abstract: Airwheel E3 reaches the peak in the aspect of foldability thanks to the innovative “double O” design making its folding size of 400*353*472mm.
Airwheel E6, as the founding member of E series featured by innovative externality design, swappable battery design with USB port, and more importantly its folding systems has laid a solid foundation for E3. Furthermore, Airwheel E3 electric folding bike reaches the peak in the aspect of foldability thanks to the innovative “double O” design making its folding size of 400*353*472mm.Today, How to fold Airwheel E3 will be illustrated in the following contents.

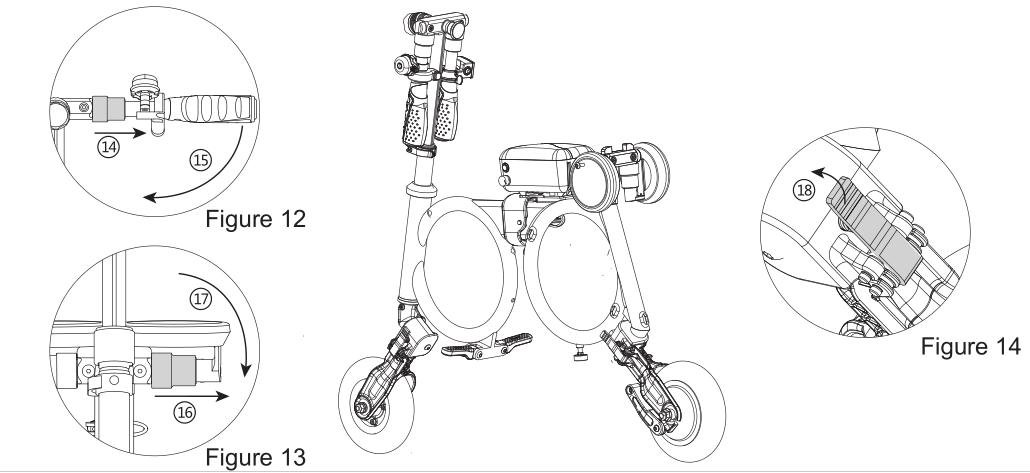

Pull the handle bar lock slightly in the arrow direction (see Figure 12-14), fold down the handle bar (see the arrow direction in Figure 12-15), release the lock. Pull the saddle lock slightly in the arrow direction (see Figure 13-16), fold the saddle (see the arrow direction in Figure 13-17), and release the saddle lock. Press the handle in the arrow direction and then release it (see Figure 14-18).

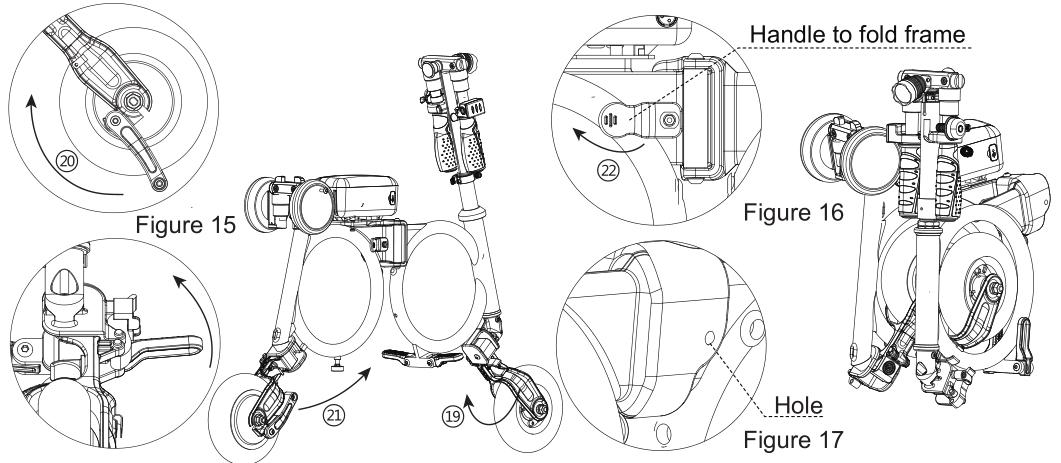

Rotate the front wheel in 180° (see the arrow direction in 19), put it inside the frame. Raise up the
kickstand (see the arrow direction in Figure 15-20 ). Fold the back wheel in the same way (see the
arrow direction in 21). Fold the pedal. Press the handle hard (see the arrow direction in 16-22) to
make the lock pin leave the hole, fold the frame together, tie up with Velcro straps and folding process all completed.
It is worth mentioning the usage of Airwheel backpack electric bike E3's phone holder mounted on the center of the handle.

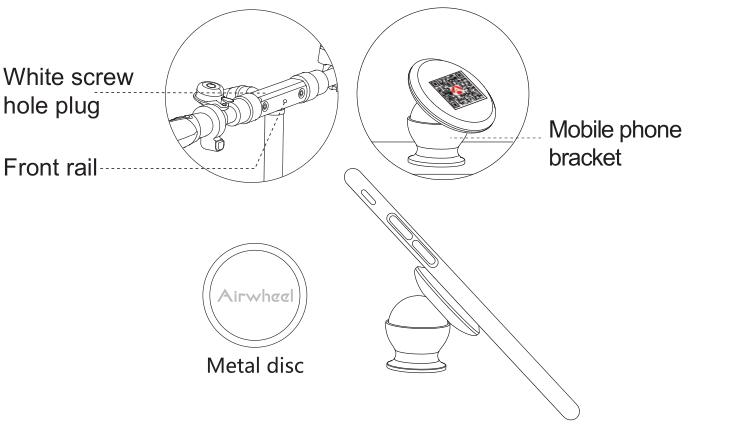

Unpin the white screw hole end cap on the rail, fasten the mobile phone bracket with the QR code clockwise, unpost the paster with Airwheel logo in the reverse of metal disc paste it on the phone and absorb the phone on the round base.（Please do not put the phone in the bracket in case of falling off when ride in the bumpy roads.）
.jpg)
Since its release, Airwheel E3 electric folding bike has been well received. Mastering the folding and unfolding steps will make the riding more pleasant.
